08-ANT-1020 | Omni Directional Mobile Outdoor

08-ANT-1020
Request Quote

08-ANT-1020

  • Omni Directional Antenna
  • Outdoor Antenna
  • Mobile Antenna
  • Maximum Signal Stability, 700MHz -3GHz, 6 dBi
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

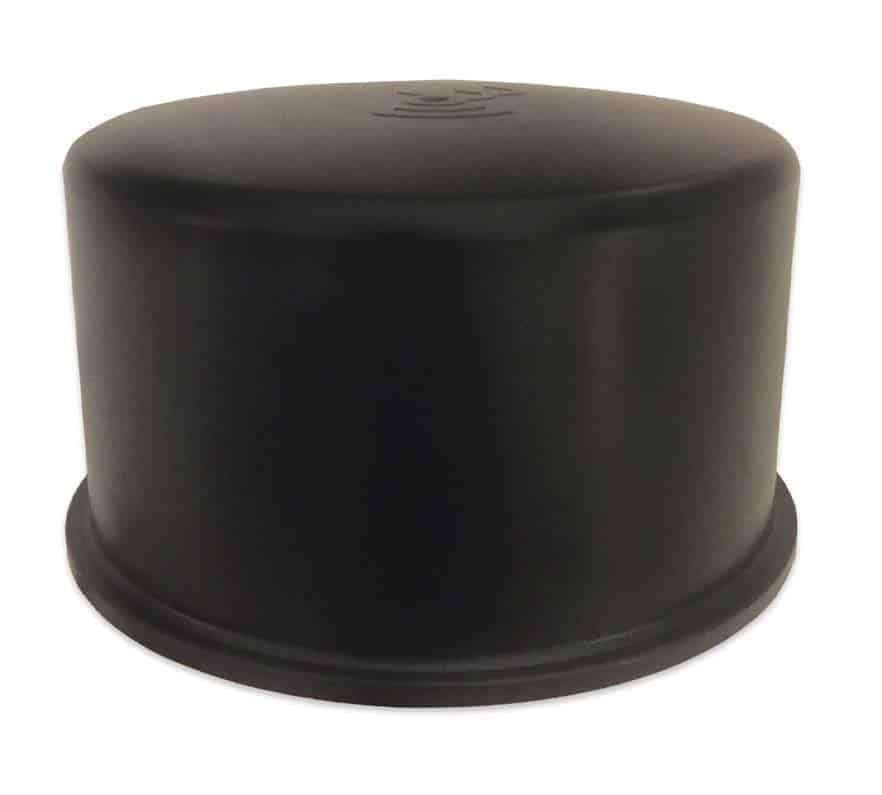

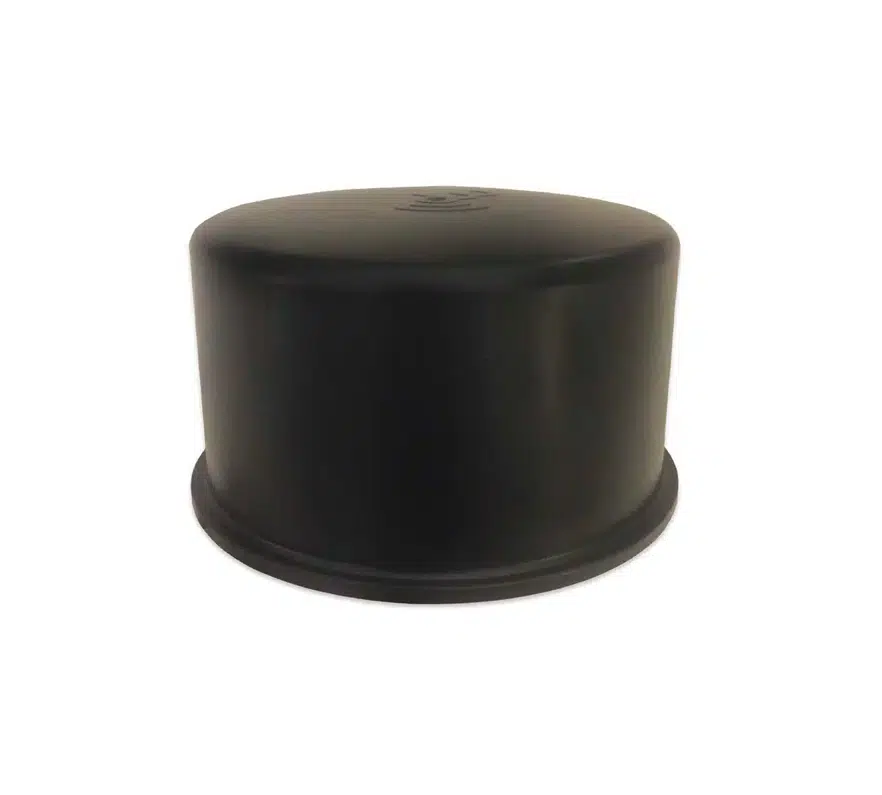

 Antenna 08-ANT-1020 is an omni directional antenna for outdoor use. This mobile antenna is multi-polarized and provides maximum signal stability.

This omnidirectional antenna provides superior patterning and continuous performance for fixed or mobile communications. Applications  include obstructed deployments such as outdoor DAS systems and bi-directional amplifiers (BDA).

A type of Dual Feed Mobile MIMO Antenna, 08-ANT-1020 comes with hardware for thru hole mounting. It’s is available with a 700MHz – 3GHz bandwidth.

See the Part Numbers for a list of frequencies. The features, applications, downloads, product specifications, and reviews sections provide additional information.

Applications

  • DAS Systems
  • Remote Monitoring
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • RoHS Compliant
  • Compact Design
  • VHF and UHF Configurations Available

Downloads

Data Sheet 08-ANT-1020

photos

Specifications
Model Number
08-ANT-1020
Frequency Range
700MHz - 3GHz
Gain
6 dBi
VSWR
<2:1
Ground Plane
Built In
Color
Black
Antenna Feeds
Two
Coax Length
N/A
Coax Type
N/A
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymer
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
6.10 in
Width
6.10 in
Height
4.10 in
Weight
N/A
Included Hardware
Nut, Washer
