08-ANT-0891 | 400 to 500MHz Land Mobile Base Station UHF VHF Antenna

400 mhz antenna 08-ANT-0891
Request Quote

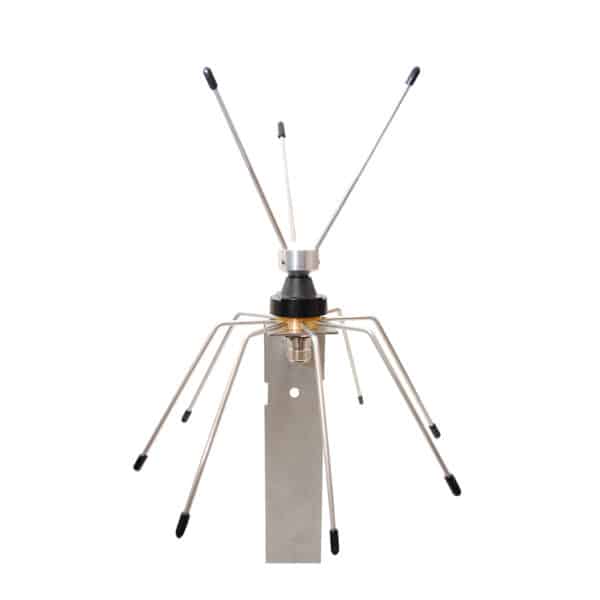

UHF VHF Antenna 08-ANT-0891

  • 400MHz to 500MHz, 3 dBi, Maximum Signal Stability
  • Land Mobile Radio
  • Base Station Antenna
  • Two Way Radio Antenna
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

UHF VHF antenna 08-ANT-0891 has a 400 – 500MHz frequency range. This base station antenna is a two way radio antenna for land mobile radio. Made in USA.

Designed for Remote Monitoring and Two-Way Government/Commercial radio communications the Multi-Polarized 400-500MHz UHF Base Station antenna offers a light weight unique tri-element construction and is easily installed with included mast mounting hardware. The 400-500MHz UHF Base Station seamlessly covers the frequency range from 400MHz to 500MHz providing unequaled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments. For ultimate performance use Super-M antennas on the receiver and transmitter to further reduce problematic dead zones and increase signal stability.

See more UHF VHF Antennas from MP Antenna.

Applications

  • Remote Monitoring
  • Two Way Radio
  • 450 MHz Public Safety Band
  • 400-500 MHZ
  • White Space Communications

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Omnidirectional
  • RoHS Compliant
  • Mast Mount Hardware Included

Downloads

Data Sheet 08-ANT-0891 400-500MHz UHF Base Station Antenna

photos

Specifications
Model Number
08-ANT-0891
Frequency Range
400MHz to 500MHz
Gain
3 dBi
VSWR
<1.8:1
Ground Plane
Built In
Color
N/A
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
Stainless Steel, Aluminum
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
N/A
Length
8 in
Width
8 in
Height
9 in
Weight
13 oz
Included Hardware
Mast Mount Bracket
