08-ANT-0954 | 700MHz to 6GHz Wideband Mobile NMO Cellular Antenna

5g nmo antenna 08-ANT-0954
Request Quote

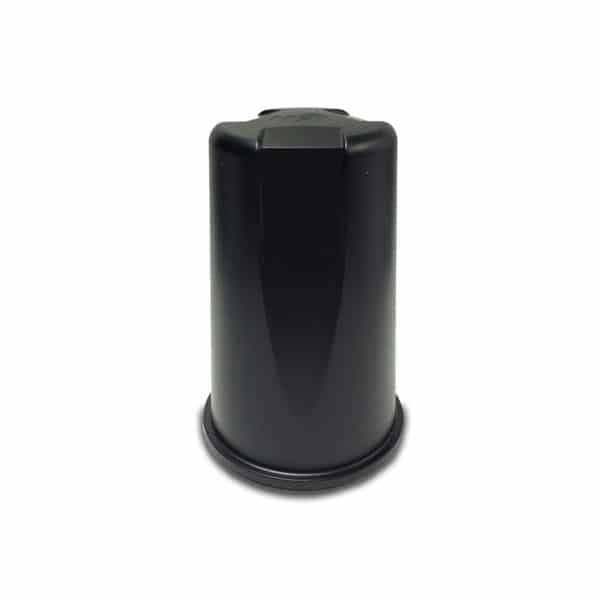

Cellular Antenna 08-ANT-0954

  • Mobile Antenna
  • 5 dBi
  • Multiband
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Cellular antenna 08-ANT-0954 has a frequency range of 700MHz – 6GHz. This omni directional NMO antenna is used for land mobile radio and multiband.

The MP Broadband NMO Antenna is the latest in Multi-Polarized technology providing superior patterning and continuous wideband performance (700MHz-6GHz) for mobile voice and data communications. The MP Broadband NMO Antenna allows users to transmit and receive in real world environments where other antennas fail to connect. Installs on High Frequency Pin Style NMO Mounts and works seamlessly with any radio repeater system or data device to ensure maximum reliability when it matters most.

See more 700MHz to 900MHz Antennas from MP Antenna.

Applications

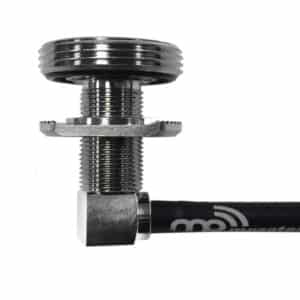

  • Fits High Frequency NMO mounts only.
  • Public Safety Communications
  • 3G 4G CDMA GSM PCS LTE
  • DAS BDA Systems
  • 902MHz - 928MHz ISM
  • Remote Monitoring
  • SCADA
  • M2M

Features

  • Patented Multi-Polarized three dimensional element design
  • Wideband Performance
  • Multi-Polarized
  • Multiband Continuous Performance (700MHz-6GHz)
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • Easy Installation
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0954 Model Data Sheet

photos

Specifications
Model Number
08-ANT-0954
Frequency Range
700MHz to 6GHz
Gain
5 dBi
VSWR
<1.5:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2.5 in
Width
2.5 in
Height
3.7 in
Weight
1.7 oz
Included Hardware
Nut and Washer
