MP Antenna

08-ANT-0959

08-ANT-0959 | 700MHz to 3GHz 3 to 6GHz  Mobile Cellular Antenna

broadband antenna 08-ANT-0959 | antenna technologies
Request Quote

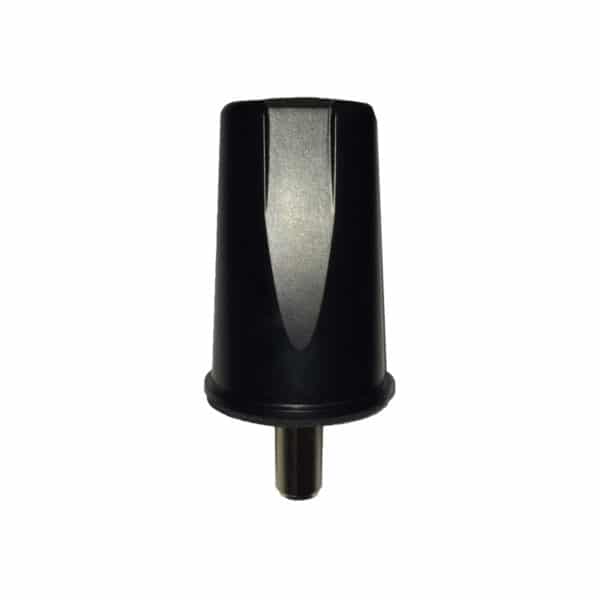

Cellular Antenna 08-ANT-0959

  • 700MHz to 3GHz, 4GHz to 6GHz, 5 dBi
  • Mining Antenna
  • Mobile Antenna
  • Wireless Broadband with Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Cellular antenna 08-ANT-0959 is a mining antenna and a mobile antenna with a 700MHz – 3GHz or 3 – 6GHz frequency range. Use for wireless broadband.

The MP Broadband N-Female Antenna allows users to transmit and receive in real world environments where other antennas fail to connect. Installs on any metal surface and improves signal stability and throughput for any voice or data device. The ideal antenna for any M2M vending or remote monitoring deployments.

See more 700MHz to 900MHz Antennas from MP Antenna.

Applications

  • Public Safety Communications
  • 3G CDMA GSM PCS LTE
  • DAS BDA Systems
  • 902MHz - 928MHz ISM
  • Remote Monitoring
  • SCADA
  • M2M
  • NLOS Systems

Features

  • Patented Multi-Polarized three dimensional element design
  • Multiband Continuous Performance (700MHz-2700MHz)
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • Easy Installation
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0959

photos

Specifications
Model Number
08-ANT-0959
Frequency Range
700MHz to 3GHz, 4GHz to 6GHz
Gain
5 dBi
VSWR
<1.5:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2.5 in
Width
2.5 in
Height
3.7 in
Weight
1.5 oz
Included Hardware
Nut and Washer
