MP Antenna

MP0928-2X-HD

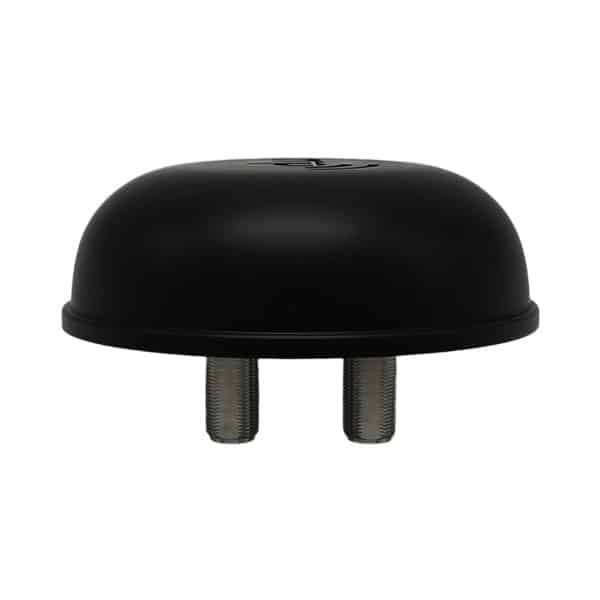

MP0928-2X-HD | Dual Band Omni Rugged WiFi Antenna

DUAL FEED RUGGED ANTENNA
Request Quote

Mining Antenna MP0928-2X-HD

  • 5.8GHz Bands, 6 dBi
  • Mining Antenna
  • Wireless Broadband
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Mining antenna MP0930-1X-HD is an omni directional antenna with a dual band frequency range of 2GHz to 3GHz, and 4.9GHz to 6GHz. This dual band antenna and surface mount antenna is multi-polarized.

The MP0930-1X-HD is a low profile Multi-Polarized Surface Mount Omni Antenna designed for mobile Mining communications, and is made of impact resistant acetal Delrin. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

The MP0930-1X-HD Rugged Surface Mount Omni Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Applications

  • 5.8GHz Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • Mining Antenna
  • Underground Networks MSHA
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating Transmit and Receive
  • Enhanced Connectivity and Increased Throughput
  • Built In Spatial Diversity
  • Low Profile
  • Surface Mount
  • RoHS Compliant
  • Rugged Impact Resistant Dome

Downloads

Data Sheet MP0928-2X-HD Dual Band Rugged Antenna

photos

Specifications
Model Number
MP0928-2X-HD
Frequency Range
4.9GHz to 6GHz
Gain
6 dBi
VSWR
<1.2:1
Ground Plane
Built In
Color
Black
Antenna Feeds
Two
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
Machined Impact Resistant Delrin Dome
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
5.5 in
Width
5.5 in
Height
1.83 in
Weight
17 oz
Included Hardware
Nut and Washer
