08-ANT-0902 | 700 to 2700 MHz Mobile Land Radio NMO Antenna

08-ANT-0902
Request Quote

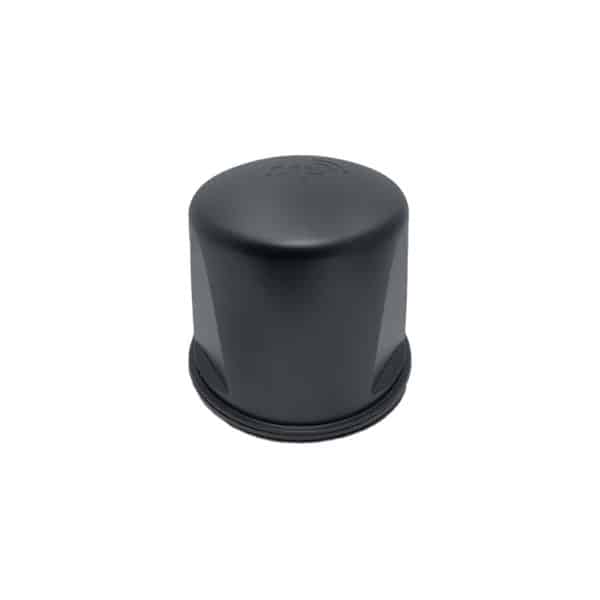

NMO Antenna 08-ANT-0902

  • 700MHz to 2700MHz, 5 dBi, Maximum Signal Stability
  • Two Way Radio Antenna
  • Land Mobile Radio
  • Mobile Antenna
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

NMO antenna 08-ANT-0902 has a frequency range of 700 – 2700 MHz. This two way radio antenna is for land mobile radio. It’s a mobile antenna from MP Antenna.

The Mobius-NMO is the latest in Multi-Polarized technology providing superior patterning and continuous wideband performance (700MHz – 2700MHz) for mobile voice and data communications. Tested and approved by numerous first responder (Police Fire EMS) the Mobius-NMO allows users to transmit and receive in real world environments where other antennas fail to connect. Installs on High Frequency Pin Style NMO Mounts and works seamlessly with any radio repeater system or data device to ensure maximum reliability when it matters most. (Fits High Frequency Pin Style NMO Mounts Only)

See more 700MHz to 900MHz Antennas from MP Antenna.

Applications

  • Public Safety Communications
  • 3G CDMA GSM PCS LTE
  • DAS BDA Systems
  • 902MHz - 928MHz ISM
  • Remote Monitoring
  • SCADA
  • M2M
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Multiband Continuous Performance (700MHz-2700MHz)
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • Easy Installation
  • RoHS Compliant
  • Fits High Frequency NMO mounts only

Downloads

Data Sheet Mobius NMO 700-2700MHz LTE GSM Antenna

photos

Specifications
Model Number
08-ANT-0902
Frequency Range
700MHz to 2700MHz
Gain
5 dBi
VSWR
<1.8:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
High Frequency NMO Mount
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP66
Length
4.5 in
Width
4.5in
Height
4 in
Weight
4 oz
Included Hardware
Antenna Only
