MP Antenna

08-ANT-0917

08-ANT-0917 | 740 to 879MHz Land Mobile Radio NMO Omni Directional Antenna

08-ANT-0917
Request Quote

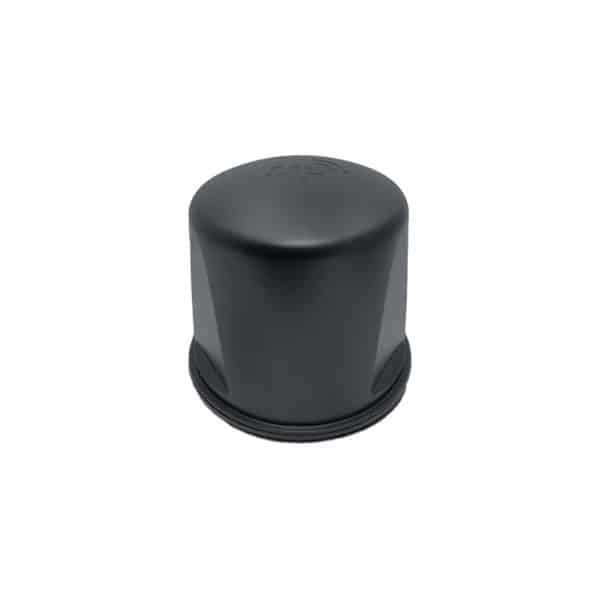

Omni Directional Antenna 08-ANT-0917

  • 740MHz to 870MHz, 5.2 dBi, Maximum Signal Stability
  • NMO Antenna
  • Indoor and Outdoor Antenna
  • Land Mobile Radio
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Omni directional antenna 08-ANT-0917 has a 740 – 879MHz frequency range. This NMO antenna is an indoor and outdoor antenna for land mobile radio.

The 08-ANT0917 Omni antenna provides superior patterning for mobile voice and data communication from 740MHz to 870MHz. Tested and approved for public safety, this NMO antenna utilizes signals in all polarizations. This allows users to transmit and receive all available signals in real-world obstructed environments where other antennas fail to connect.

Omni directional antenna 08-ANT-0917 works seamlessly with any radio or data device to ensure maximum reliability for first responders and emergency services when it matters most. Plus, it’s proudly Made in the USA.

Applications

  • Public Safety Communications
  • Wireless Broadband Systems
  • Smart Grid Monitoring Systems
  • SCADA
  • M2M
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Multiband Performance 740MHz-870MHz
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • Easy Installation
  • RoHS Compliant
  • Fits Standard NMO Mount

Downloads

Data Sheet 08-ANT-0917

photos

Specifications
Model Number
08-ANT-0917
Frequency Range
740MHz to 870MHz
Gain
5.2 dBi
VSWR
<1.5:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
Standard NMO
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP66
Length
4.5 in
Width
4.5 in
Height
4 in
Weight
4 oz
Included Hardware
Antenna Only

Related products

Reviews

There aren’t any reviews for this product yet.
