08-ANT-0919 | 806 to 960MHz Mobile Multiband Omni Directional Antenna

08-ANT-0919
Request Quote

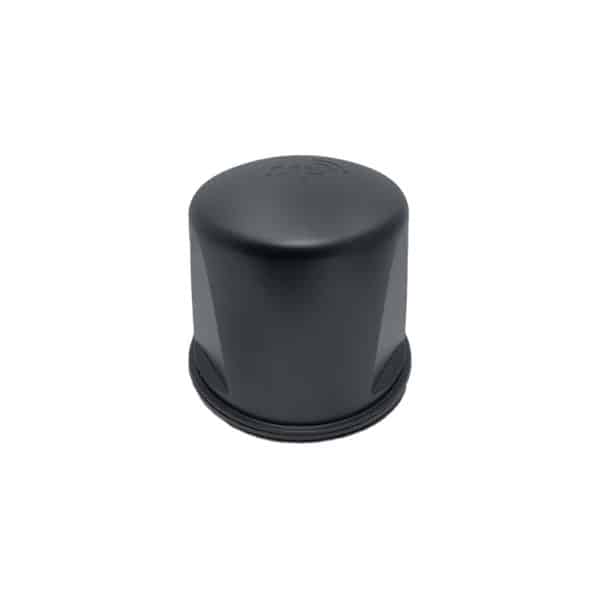

Omni Directional Antenna 08-ANT-0919

  • 806MHz to 960MHz, 5.2 dBi
  • Land Mobile Radio
  • Wireless Broadband and Multiband
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Omni directional antenna 08-ANT-0919 has an 806 – 960MHz frequency range. This multiband antenna is for wireless broadband and land mobile radio.

The Omni-NMO by MP Antenna provides superior patterning for mobile voice and data communication from 806MHz-960MHz. Tested and approved by first responders the Omni-NMO utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect. The Omni-NMO works seamlessly with any radio or data device to ensure maximum reliability for emergency services when it matters most.

See more 700MHz to 900MHz Antennas from MP Antenna.

Applications

  • Public Safety Communications
  • Wireless Broadband Systems
  • Smart Grid Monitoring Systems
  • SCADA
  • M2M
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Multiband Performance 806MHz-960MHz
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • Easy Installation
  • RoHS Compliant
  • Fits Standard NMO Mount

Downloads

Data Sheet 08-ANT-0919

photos

Specifications
Model Number
08-ANT-0919
Frequency Range
806MHz to 960MHz
Gain
5.2 dBi
VSWR
<1.4:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
Standard NMO
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP66
Length
4.5 in
Width
4.5 in
Height
4 in
Weight
4 oz
Included Hardware
Antenna Only
