08-ANT-0922 | 870 to 999MHz  Mobile Omni Directional Antenna

08-ANT-0912
Request Quote

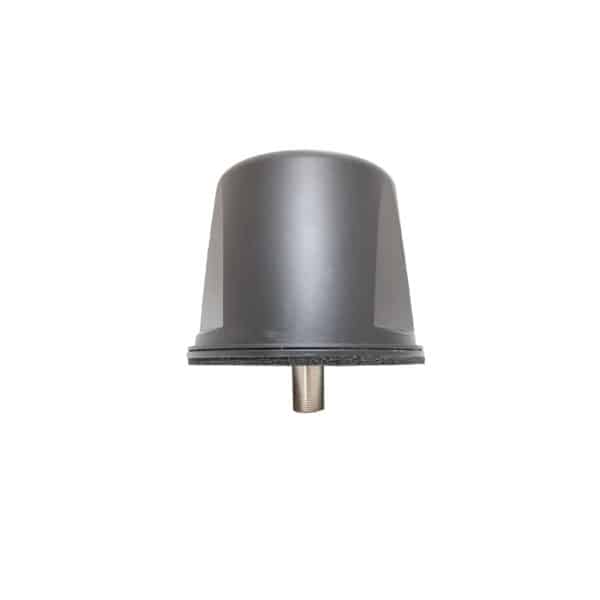

Omni Directional Antenna 08-ANT-0922

  • 870MHz to 999MHz
  • 5.2 dBi
  • Maximum Signal Stability
  • Patented Multi-Polarized three dimensional element design
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Omni directional antenna 08-ANT-0922 has a 900 – 870MHz frequency range. This wireless technology can be used as mining antenna or with land mobile radio.

The 900 MHz Antenna Omni-N by MP antenna is the latest in Multi-Polarized technology providing superior patterning for mobile voice and data communication from 870MHz-999MHz. Tested and approved by two-way radio users SCADA and in mining networks the 900 MHz Omni-N Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Omni directional antenna 08-ANT-0922 works seamlessly with any radio or data device to ensure maximum reliability for emergency services when it matters most.

Applications

  • Wide Band Performance
  • Mining Communications
  • Land Mobile Radio
  • Public Safety Communications
  • 902MHz - 928MHz ISM
  • Wireless Broadband Systems
  • Smart Grid Monitoring Systems
  • SCADA

Features

  • Patented Multi-Polarized three dimensional element design
  • Multiband Performance 870MHz-999MHz
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • Easy Installation
  • RoHS Compliant
  • High Impact Radome

Downloads

Data Sheet 08-ANT-0922 Model Data Sheet

photos

Specifications
Model Number
08-ANT-0922
Frequency Range
870MHz to 999MHz
Gain
5.2 dBi
VSWR
<1.6:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
4.5 in
Width
4.5 in
Height
4 in
Weight
8 oz
Included Hardware
Nut and Washer
