08-ANT-0913 | 4.9GHz (4.9 to 4.99 GHz) High Gain Public Safety Antenna

08-ANT-0913
Request Quote

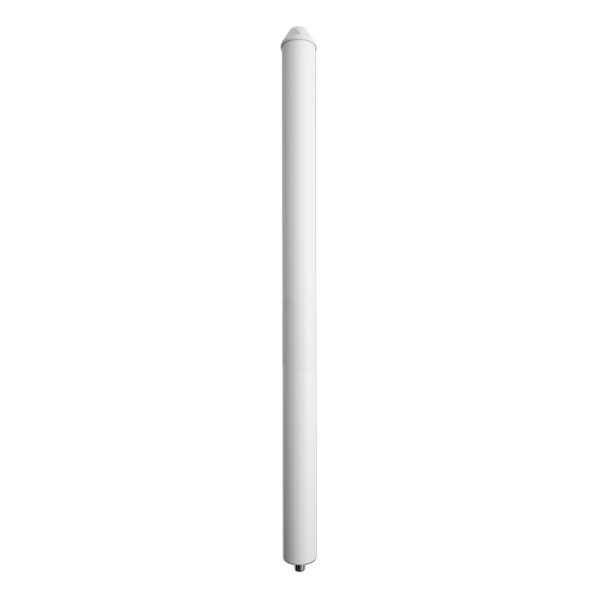

Public Safety Antenna 08-ANT-0913

  • 4.9GHz to 4.99GHz
  • 8 dBi
  • Public Safety Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

Public safety antenna 08-ANT-0913 is an omni directional antenna with a frequency range of 4.9 to 4.99GHz. Use this base station antenna as a police antenna.

The High Gain Omni-4.9GHz 8dBi antenna radiates maximum power in all directions and provides superior patterning and continuous performance (4.9GHz-4.99GHz) for base station data communications.

Public safety antenna 08-ANT-0913 has built-in spatial diversity and a patented 3-D Design. This High Gain Omni-4.9GHz 8dBi antenna captures signals in any polarization allowing users to transmit and receive behind buildings hills and in valleys where other antennas cannot maintain connectivity.

Applications

  • 4.9GHz Band
  • Point to Multipoint Systems
  • Wireless Broadband Systems
  • Access Point Router Bridge CPE
  • Building Penetration and High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • RoHS Compliant
  • Light Weight

Downloads

Data Sheet 08-ANT-0913

photos

Specifications
Model Number
08-ANT-0913
Frequency Range
4.9GHz to 4.99GHz
Gain
8 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White
Antenna Feeds
One
Coax Length
Various
Coax Type
Low Loss 200 Series on pigtail versions
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2 in
Width
2 in
Height
18 in
Weight
6 oz
Included Hardware
Antenna Only
