08-ANT-0927 | 4.9GHz (4.9 to 4.99GHz) Mobile Public Safety Antenna

08-ANT-0927
Request Quote

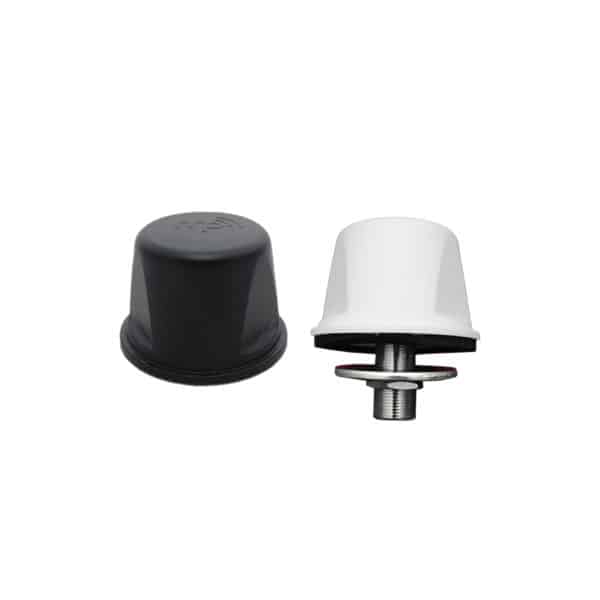

Public Safety Antenna 08-ANT-0927

  • 4.9GHz to 4.99GHz, 6 dBi
  • Mining Antenna and Mobile Antenna
  • Police Antenna and Public Safety Antenna
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Public safety antenna 08-ANT-0927 is mobile antenna with a frequency range of 4.9GHz (4.9 – 4.99 GHz). Use this mobile antenna as a police antenna. Applications include wireless broadband systems, wireless mesh systems, vehicle WiFi, and WiMAX.

The Omni 4.9GHz-N is a low profile Multi-Polarized antenna designed for mobile data communications. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

Public safety antenna 08-ANT-0927 utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Applications

  • 4.9 GHz Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • WIMAX
  • Vehicle WiFi
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Low Profile
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0927

photos

Specifications
Model Number
08-ANT-0927
Frequency Range
4.9GHz to 4.99GHz
Gain
6 dBi
VSWR
<1.2:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2.5 in
Width
2.5 in
Height
1.75 in
Weight
2.6 oz
Included Hardware
Nut and Washer
