08-ANT-0941 | 4.9GHz (4 to 6 GHz) Wideband Public Safety Antenna

08-ANT-0941
Request Quote

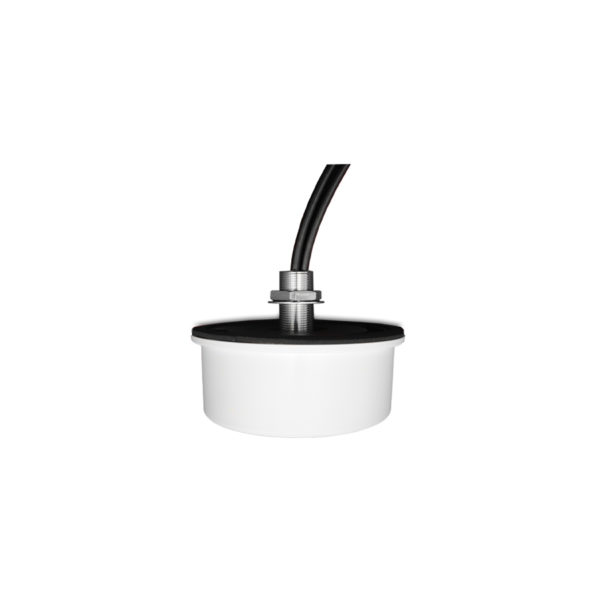

Public Safety Antenna 08-ANT-0941

  • 4GHz to 6GHz, 4 dBi
  • Police Antenna
  • Wideband Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Public safety antenna 08-ANT-0941 is an indoor antenna with a frequency range of 4.9GHz (4 – 6 GHz). Use this wideband antenna as a police antenna.

The 5GHz Indoor MIMO Antenna by MP Antenna is a low profile Multi-Polarized MIMO (Multiple-Input-Multiple-Output) antenna providing superior patterning and continuous wideband performance (4.9-6GHz) fixed indoor data communications. The 5GHz Indoor MIMO Antenna is Available with 1×1 2×2 3×3 or 4×4 antenna Feeds allowing maximum diversity for 4.9GHz / 5.8GHz WiFi and WiMAX broadband wireless frequencies.

Public safety antenna 08-ANT-0941 features a built-in ground plane, high-performance low loss cables, and high-quality connectors for maximum system efficiency. Custom configurations are also available.

Applications

  • 5 GHz Band
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • Remote Video Monitoring
  • High Obstruction Deployments
  • Public Safety Communications
  • Indoor Fixed or Mobile

Features

  • Patented Multi-Polarized three dimensional element design
  • Available with 1 2 3 4 5 or 6 Separate Antenna Feeds
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Wide Band Performance
  • Integrated Ground Plane
  • UV Stabilized Materials

Downloads

Data Sheet 08-ANT-0941
Build Sheet 08-ANT-0941 5GHz Multiple Feed MIMO Antenna

photos

Specifications
Model Number
08-ANT-0941
Frequency Range
4GHz to 6GHz
Gain
4 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
Upto 6 Feeds
Coax Length
Various
Coax Type
Low Loss 200 Series
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Indoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
4.5 in
Width
4.5 in
Height
2.5 in
Weight
12 oz
Included Hardware
Nut and Washer
