08-ANT-0978 | 5GHz Bi-Directional Surface Mount Antenna

08-ANT-0978
Request Quote

Rail Antenna 08-ANT-0978

  • 4.9GHz to 6GHz, 10 dBi
  • Transit Antenna
  • Wireless Broadband
  • Maximum Signal Stability
bidirectional__azimuth_horizontal

Horizontal Radiation

Bi-Directional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

WiFi antenna 08-ANT-0978 is a bi-directional antenna with a frequency range of 4.9GHz. This dual feed antenna and surface mount antenna is multi-polarized.

The 08-ANT-0978 is a low profile Multi-Polarized Surface Mount Bi-Directional Antenna designed for transit data communications. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

The Bi-Directional 5GHz Surface Mount Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Applications

  • 4.9 GHz Band
  • 5 GHz Band
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating Transmit and Receive
  • Enhanced Connectivity and Increased Throughput
  • Built In Spatial Diversity
  • Low Profile
  • Stud Mount
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0978 Antenna

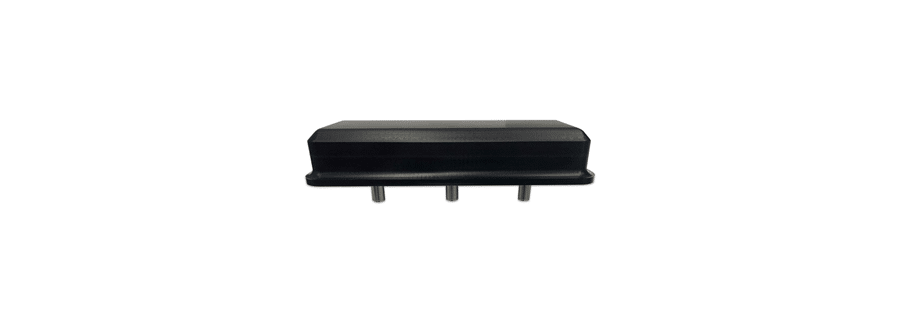

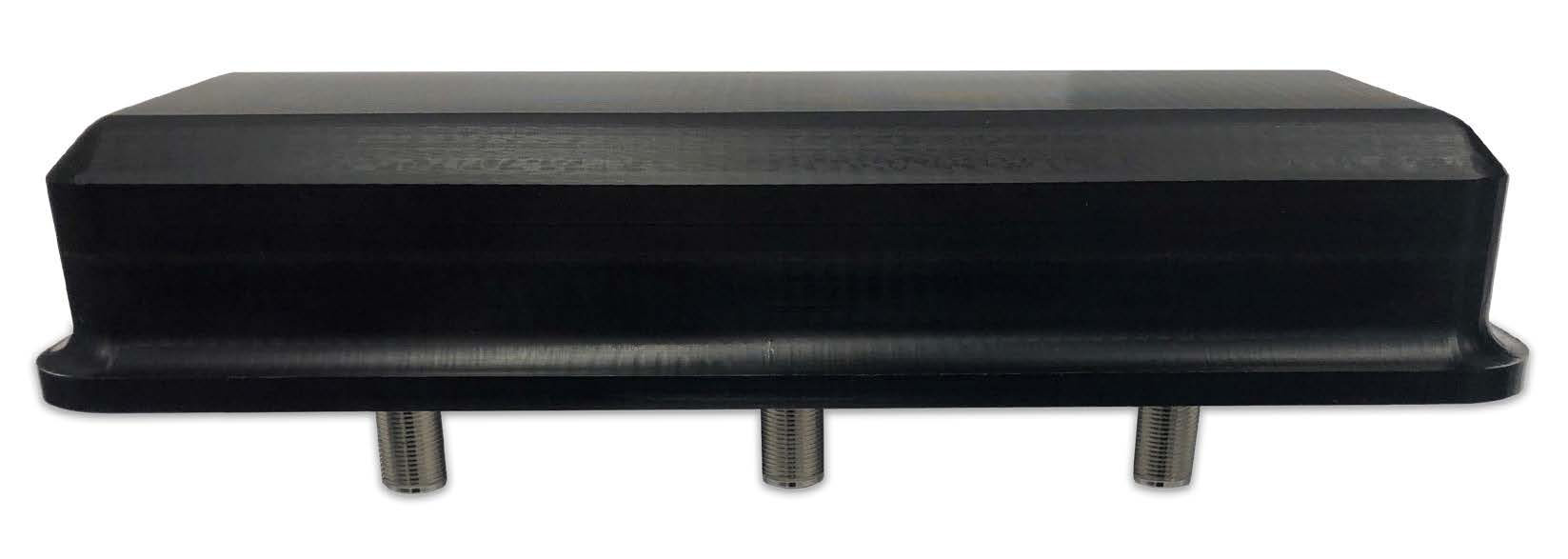

photos

Specifications
Model Number
08-ANT-0978
Frequency Range
4.9GHz to 6GHz
Gain
10 dBi
VSWR
<1.5:1
Ground Plane
Built-In
Color
Black
Antenna Feeds
Three
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
Impact Resistant Delrin
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
11 in
Width
4.0 in
Height
1.9 in
Weight
12 oz
Included Hardware
Nut and Washer
