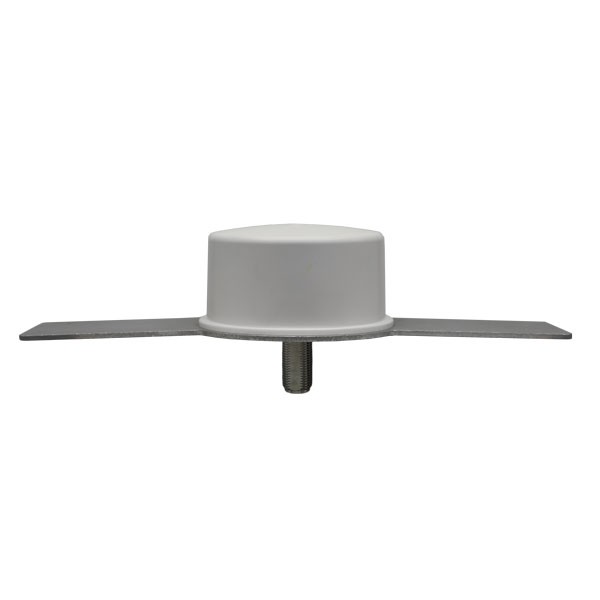

Rail Antenna 08-ANT-1070

  • 2.3GHz to 2.5GHz, 8 dBi
  • Transit Antenna
  • Also Available in Dual Feed
  • Maximum Signal Stability
bidirectional__azimuth_horizontal

Horizontal Radiation

Bi-Directional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

WiFi antenna 08-ANT-1070 is a bi-directional antenna with a frequency range of 2.4GHz. This single band antenna and surface mount antenna is multi-polarized.

The 08-ANT-1070 is a low profile Multi-Polarized Surface Mount Bi-Directional Antenna designed for transit data communications. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

The Bi_Directional 2.4GHz Surface Mount Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Applications

  • 2.4 GHz Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • Vehicle WiFi
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating Transmit and Receive
  • Enhanced Connectivity and Increased Throughput
  • Built In Spatial Diversity
  • Low Profile
  • Surface Mount
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-1070 Antenna

photos

Specifications
Model Number
08-ANT-1070
Frequency Range
2.3GHz to 2.5GHz
Gain
8 dBi
VSWR
<1.5:1
Ground Plane
Built-In
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
12.0 in
Width
5.0 in
Height
2.5 in
Weight
Included Hardware
Nut and Washer
