MPSL2200+4400

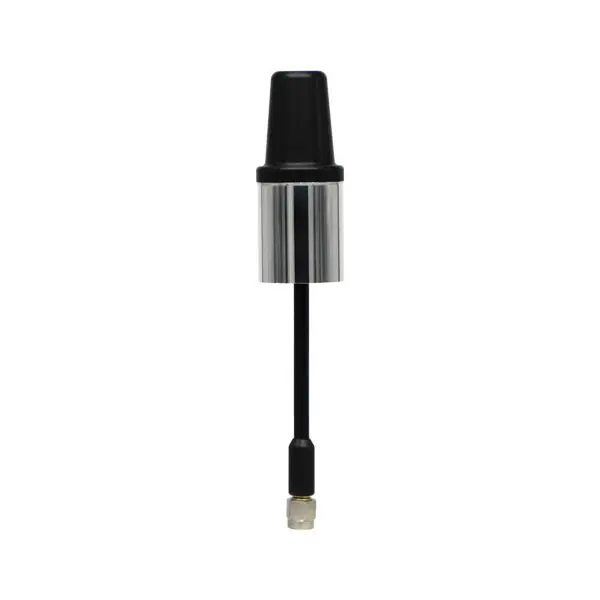

MPSL2200+4400 | 2.2GHz-2.5GHz and 4.4GHz-5GHz Omni Directional UAV Drone Antenna

S-Band uav mpsl2200 antenna
Request Quote

UAV Antenna MPSL2200+4400

  • 2.2GHz-2.5GHz and 4.4GHz-5GHz
  • 4 dBi
  • Gooseneck Style Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

MPSL2400 has a frequency range of 2400-2500MHz. This omni directional antenna is ideal for UAV, Drone, UGV and AGV communications. It’s Made in the USA and features Multi-Polarized antenna technology.

The light weight SwarmLink Antennas are the latest in Multi-Polarized antenna design. This 2400MHz antenna is excellent for providing superior patterning and continuous performance for wireless communications on UAVs, drones, UGVs, and AGVs. The MPSL2400 omnidirectional antenna is ideal for Non Line Of Sight (NLOS) communications and highly obstructed deployments.

The compact antenna provides increased throughput and signal stability in obstructed environments and increases range and performance over standard dipole or singularly polarized antennas. The MPSL2400 allows users to transmit and receive in real world environments where other antennas fail to connect.

Applications

  • UAV Communications
  • Video Downlinks
  • Telemetry Links
  • UGV and AGV Deployments

Features

  • Ultra Light Weight
  • Gooseneck Style Coax Pigtail
  • Enhanced Connectivity and Throughput for any wireless network
  • Built In spatial diversity and polarization diversity allowing for more stable connections
  • Obstruction Penetrating transmit and receive
  • RoHS Compliant
  • Patented Multi-Polarized three dimensional element design
  • Custom Configurations Available please contact our sales team

Downloads

Model Data Sheet MPSL2200+4400
Data Sheet MPSL2200+4400-BL-B SMA MALE
Data Sheet MPSL2200+4400-BL-E TNC MALE
Dimensional Drawing MPSL2200+4400-BL-B No Pigtail

photos

Specifications
Model Number
MPSL2200+4400
Frequency Range
2.2GHz-2.5GHz and 4.4GHz-5GHz
Gain
4 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
Black
Antenna Feeds
One
Coax Length
3.5 in
Coax Type
RG402
Connector Type
SMA Male
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
High Performance Plastic
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
5.50 in
Width
1.00 in
Height
5.50 in
Weight
1.1 oz
Included Hardware
N/A
