08-ANT-0955 | 1.3GHz to 1.4GHz UAV Ground Station Antenna

uav ground station antenna 08-ANT-0955
Request Quote

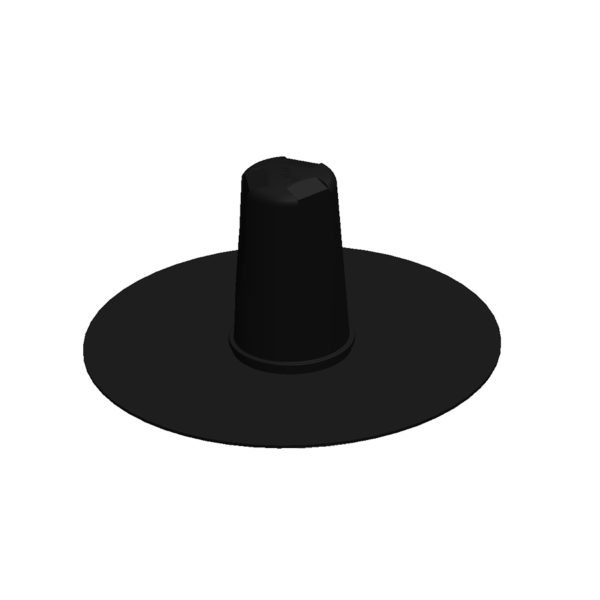

UAV Ground Station Antenna 08-ANT-0955

  • 1300MHz to 1400MHz
  • 5 dBi
  • Ground Station Antenna
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

UAV Ground Station Antenna 08-ANT-0955 is a 1.3 to 1.4 GHz N-Female Antenna that allows users to transmit and receive in real world environments where other antennas fail to connect.

Additional applications for this outdoor antenna include public safety communications, remote monitoring, NLOS systems, and high obstruction deployments. Choose products in white or black. Hardware includes a nut, washer and ground plane.

UAV Ground Station Antenna 08-ANT-0955 Includes antenna Ground plane for simple mounting and improves signal stability and throughput for any voice or data device. The ideal antenna for ground stations UAV Wirless or remote monitoring deployments.

Applications

  • Public Safety Communications
  • Remote Monitoring
  • Ground Station UAV
  • NLOS Systems
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Multiband Continuous Performance (1.3GHz - 1.4GHz)
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • Easy Installation
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0955 Antenna
VSWR Plot 08-ANT-0955 Antenna

photos

Specifications
Model Number
08-ANT-0955
Frequency Range
1300MHz to 1400MHz
Gain
5 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2.5 in
Width
2.5 in
Height
3.7 in
Weight
2 oz
Included Hardware
Nut, Washer and Ground Plane
