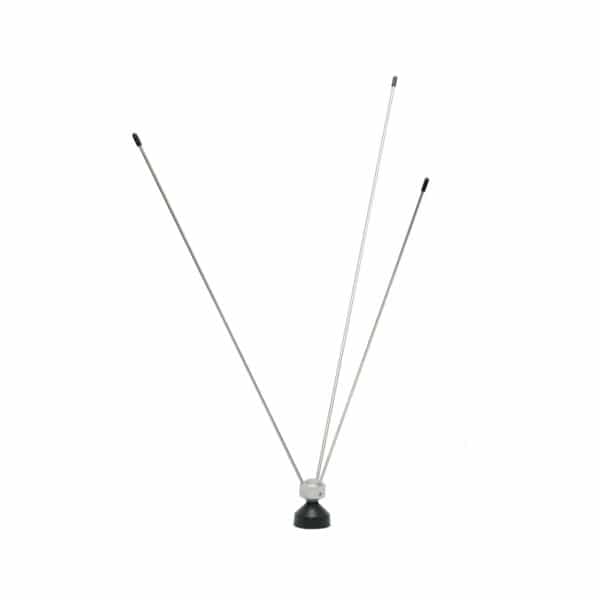

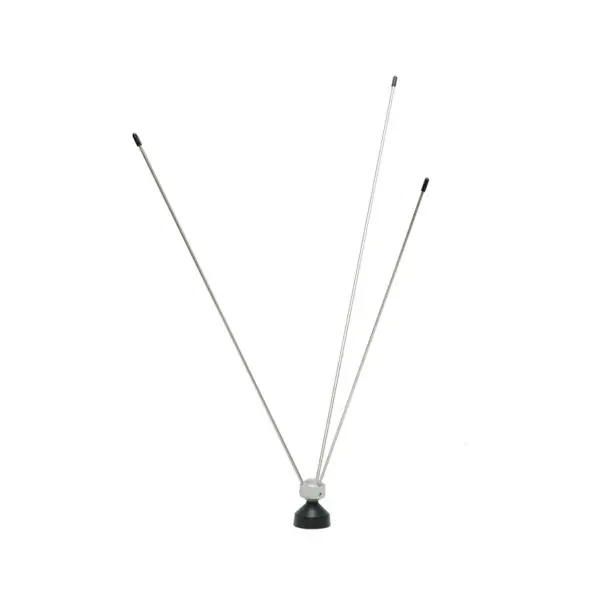

08-ANT-0865 | 25 to 1300MHz Land Mobile Radio UHF VHF Antenna

ham scanner antenna 08-ANT-0865
Request Quote

UHF VHF Antenna 08-ANT-0865

  • 25MHz to 1300MHz, 3 dBi, Maximum Signal Stability
  • Two Way Radio Antenna
  • Land Mobile Radio
  • Wireless Antenna
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

UHF VHF antenna 08-ANT-0865 has a 25 – 1300MHz frequency range. Use this two way radio antenna for land mobile radio. This wireless antenna is multi-polarized.

Designed for Mobile HAM Radio and Scanner the MultiPolarized Super-M Classic Mobile antenna offers a light weight construction and is easily mounted on any vehicle. The Super-M Classic Mobile seamlessly covers a frequency range from 25MHz to 1.3GHz (receive) and 2-Meter 220 and 440 bands (transmit) providing unequaled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments. MultiPolarized technology with MP Antenna design and production standards make the Super-M Classic Mobile the ideal antenna for signal stability in HAM Radio and Scanner. For ultimate performance use Super-M antennas on the receiver and transmitter to further reduce problematic dead zones and flutter.

See more UHF VHF Antennas from MP Antenna.

Applications

  • Commercial Radio
  • Government (Police Fire EMS)
  • Military (All Armed Forces)
  • Maritime
  • HAM Radio
  • Scanner

Features

  • Patented Multi-Polarized three dimensional element design
  • Ultra Wide Band
  • Flutter Reduction
  • Built In Spatial Diversity
  • Elevation Pattern: Peak signal from the horizon to 30 degrees above; Effective Spherical Signal Pattern
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0865 Classic Mobile Scanner Antenna
Dimensional Drawing 08-ANT-0865 Classic Mobile Scanner Antenna

photos

Specifications
Model Number
08-ANT-0865
Frequency Range
25MHz to 1300MHz
Gain
3 dBi
VSWR
<2:1
Ground Plane
Not Included
Color
N/A
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
Standard NMO
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
Stainless Steel, Aluminum
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
N/A
Length
15 in
Width
15 in
Height
20 in
Weight
5 oz
Included Hardware
Antenna Only
