MP Antenna

08-ANT-0908

08-ANT-0908 | Omni Directional DAS Indoor UHF VHF Antenna

wayside antenna 5ghz
Request Quote

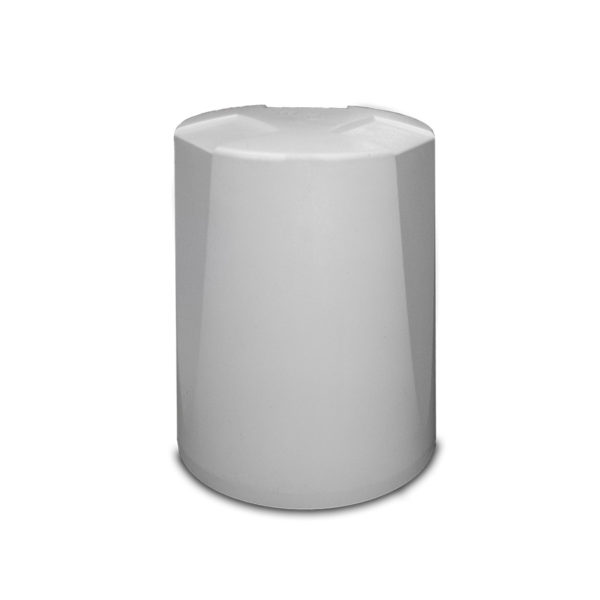

UHF VHF Antenna 08-ANT-0908

  • Omni Directional Antenna
  • Indoor Antenna
  • DAS Antenna
  • Maximum Signal Stability, Various 12MHz Bandwidth, 3 dBi
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

UHF VHF antenna 08-ANT-0908 is an omni directional antenna for indoor use. This DAS antenna is multi-polarized and provides maximum signal stability.

This omnidirectional antenna provides superior patterning and continuous performance for fixed voice communications. Applications antenna include obstructed deployments such as indoor DAS systems and bi-directional amplifiers (BDA).

A type of UHF VHF antenna, 08-ANT-0908 comes with hardware for surface mounting and ceiling installation. It’s is available with a 12MHz bandwidth.

See the Part Numbers for a list of frequencies. The features, applications, downloads, product specifications, and reviews sections provide additional information.

The outdoor sealed version of this antenna is model number 08-ANT-0908ST and can be found here

Applications

  • DAS BDA Systems
  • Remote Monitoring
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Maximum Signal Stability
  • Built In Spatial Diversity
  • RoHS Compliant
  • Compact Design
  • VHF and UHF Configurations Available

Downloads

Data Sheet 08-ANT-0908

photos

Specifications
Model Number
08-ANT-0908
Frequency Range
Various 12MHz Bandwidth
Gain
3 dBi
VSWR
2.0:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
One
Coax Length
Various
Coax Type
Low Loss 200 Series
Connector Type
N-Male
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Indoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP66
Length
4.75 in
Width
4.75 in
Height
5.75 in
Weight
7 oz
Included Hardware
Mounting Stud, Washer, and Nut
