MP Antenna

08-ANT-1041

08-ANT-1041 | 5GHz Bi-Directional Wayside Mount Antenna

wayside antenna 5ghz
Request Quote

Wayside Antenna 08-ANT-1041

  • 4.9GHz to 6GHz, 10 dBi
  • Transit Antenna
  • Wireless Broadband
  • Maximum Signal Stability

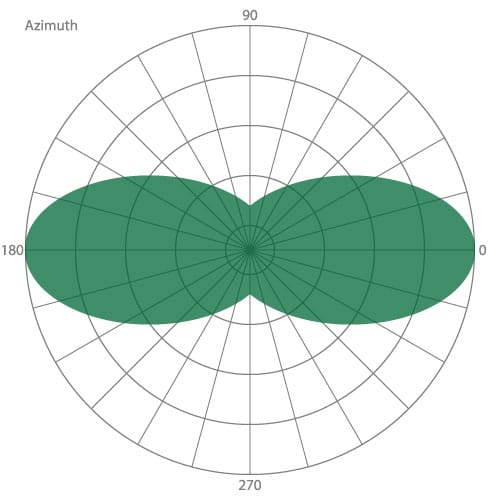

bidirectional__azimuth_horizontal

Horizontal Radiation

Bi-Directional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

WiFi antenna 08-ANT-1041 is a bi-directional antenna with a frequency range of 4.9-6GHz. This dual feed antenna and wayside mount antenna is multi-polarized.

The 08-ANT-1041 is a Multi-Polarized Bi-Directional Antenna designed for transit data communications. The exceptional effective full Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

The Bi-Directional 5GHz Wayside Mount Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Applications

  • 4.9 GHz Band
  • 5 GHz Band
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating Transmit and Receive
  • Enhanced Connectivity and Increased Throughput
  • Built In Spatial Diversity
  • Low Profile
  • Surface Mount
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-1041 Antenna

photos

Specifications
Model Number
08-ANT-1041
Frequency Range
4.9GHz to 6GHz
Gain
10 dBi
VSWR
<1.5:1
Ground Plane
Built-In
Color
White or Black
Antenna Feeds
Two
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
4.7 in
Width
4.7 in
Height
5.7 in
Weight
14 oz
Included Hardware
Nut and Washer
