08-ANT-0886 | 2.4GHz Omni Directional High Gain Wireless Broadband WiFi Antenna

08-ANT-0886
Request Quote

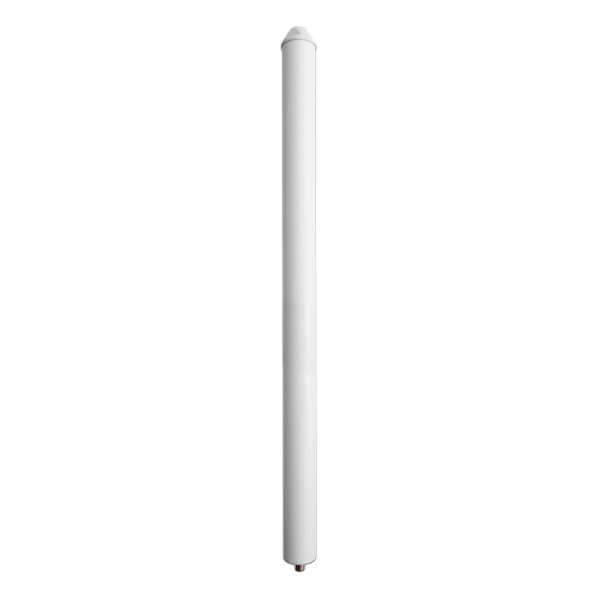

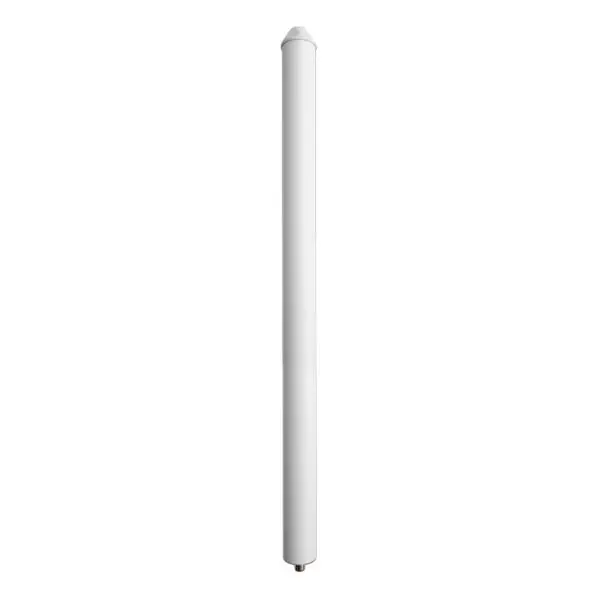

WiFi Antenna 08-ANT-0886

  • 2.4GHz to 2.5GHz, 8 dBi
  • High Gain Antenna
  • Wireless Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

WiFi antenna 08-ANT-0886 is a high-gain omni directional antenna. The frequency range for this wireless antenna is 2.4GHz. It’s multi-polarized, Made in USA, and ideal for WiFi deployments.

This 2.4 GHz high gain antenna radiates maximum power in all directions and provides superior patterning and continuous performance (2.4GHz-2.5GHz) for base station data communications.

WiFi antenna 08-ANT-0886 has built-in spatial diversity and patented 3-D Design. This high gain antenna captures signals in any polarization, allowing users to transmit and receive behind buildings hills and in valleys where other antennas cannot maintain connectivity.

Applications

  • 2.4 GHz ISM Band
  • 802.11b g n Wireless Systems
  • Wireless Broadband Systems
  • WiFi Access Point Router Bridge CPE
  • Building Penetration and High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Low Wind Load
  • Weatherproof Construction
  • RoHS Compliant
  • Light Weight

Downloads

Data Sheet 08-ANT-0886 2.4GHz High Gain Omni Antenna

photos

Specifications
Model Number
08-ANT-0886
Frequency Range
2.4GHz to 2.5GHz
Gain
8 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White
Antenna Feeds
One
Coax Length
Various
Coax Type
Low Loss 200 Series on pigtail versions
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2 in
Width
2 in
Height
29 in
Weight
13 oz
Included Hardware
Antenna Only
