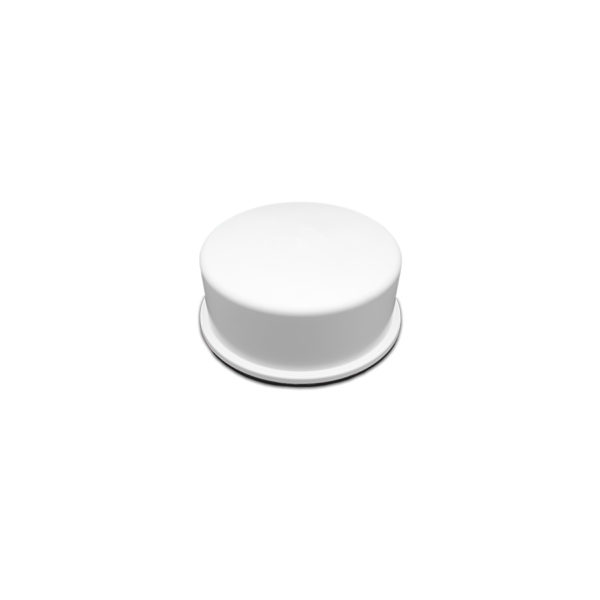

08-ANT-0894 | 2.4GHz Omni Directional Wireless Broadband WiFi Antenna

5ghz bi-directional
Request Quote

Wireless Antenna 09-ANT-0894

  • 2.4GHz to 6GHz, 4 dBi
  • Omni Directional Antenna
  • Mining Antenna
  • High Obstruction Deployments
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

WiFi Antenna 08-ANT-0894 has a frequency range of 2.4GHz. This omni directional antenna supports wireless broadband and is a mobile antenna.

The 2.4 – 6GHz Omni is a Multi-Polarized antenna designed for indoor outdoor and mobile . Weighing less than 12 oz. the 2.4 – 6GHz Omni is ideal for deployments and other commercial installations where an omnidirectional radiation pattern is required. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments. For faster throughput and greater signal stability use MP Antenna technology to further improve connectivity throughput and network performance on all wireless devices.

See more WiFi Antennas from MP Antenna.

Applications

  • Wireless Broadband Systems
  • WiFi AP Router Bridge CPE
  • 2.4 and 5 GHz Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • WIMAX
  • Vehicle WiFi

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Omnidirectional Radiation Pattern
  • Built In Spatial Diversity
  • Low Profile
  • RoHS Compliant
  • Custom Configurations Available

Downloads

Data Sheet 08-ANT-0894
Build Sheet 08-ANT-0894 WiFi Antenna Pigtail Version

photos

Specifications
Model Number
08-ANT-0894
Frequency Range
2.4GHz to 6GHz
Gain
4 dBi
VSWR
<1.5:1
Ground Plane
Built-In
Color
White or Black
Antenna Feeds
One
Coax Length
1-15 FT - pigtail version
Coax Type
Low Loss 200 Series - pigtail version
Connector Type
N-Female (Various - pigtail version)
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Indoor, Outdoor, Mobile
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
4.5 in
Width
4.5 in
Height
2.5 in
Weight
7 oz
Included Hardware
Nut and Washer
