08-ANT-0899 | 2 to 3GHz Mobile Broadband Vehicle WiFi Wireless Antenna

08-ANT-0899
Request Quote

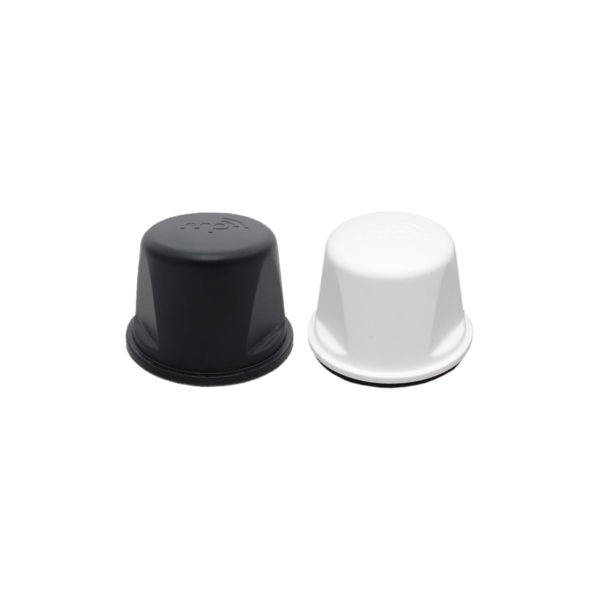

Wireless Antenna 08-ANT-0899

  • 2GHz to 3GHz, 6 dBi
  • Mobile Antenna
  • Wireless Broadband and Vehicle WiFi
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Wireless antenna 08-ANT-0899 is for wireless broadband and has a 2 – 3 GHz frequency range. This mobile antenna supports vehicle WiFi. Multi-polarized.

The Omni 2.4GHz mobile antenna is a low profile Multi-Polarized antenna designed for mobile data communications. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

The Omni 2.4GHz mobile antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Applications

  • 2-3 GHz Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • Wireless Broadband Systems
  • WIMAX
  • Vehicle WiFi
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating Transmit and Receive
  • Enhanced Connectivity and Increased Throughput
  • Built In Spatial Diversity
  • High performance whipless low profile design for mobile application
  • RoHS Compliant
  • Mobile Antenna operates on 4.5 inch minimum ground plane

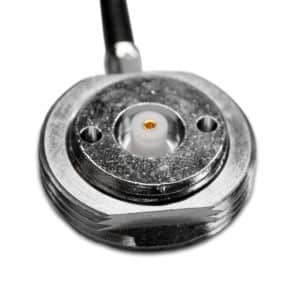

  • Fits High Frequency pin style NMO mounts only.

Downloads

Data Sheet 08-ANT-0899

photos

Specifications
Model Number
08-ANT-0899
Frequency Range
2GHz to 3GHz
Gain
6 dBi
VSWR
<1.5:1
Ground Plane
Not Included (4.5 in min recommended)
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
High Frequency NMO Mount
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2.5 in
Width
2.5 in
Height
1.75 in
Weight
2 oz
Included Hardware
Antenna Only
