08-ANT-0923 | 2.4GHz Omni Surface Mount Single Band WiFi Antenna

08-ANT-0923
Request Quote

Wireless Antenna 08-ANT-0923

  • 2GHz to 3GHz, 6 dBi
  • Mobile Antenna
  • Wireless Broadband
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

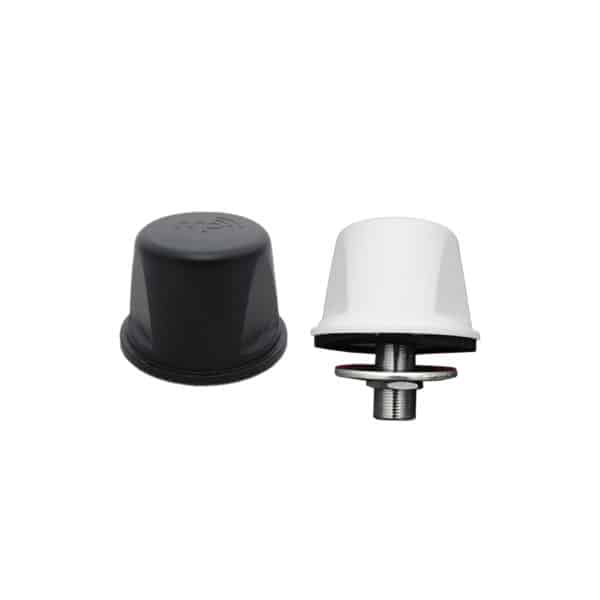

WiFi antenna 08-ANT-0923 is an omni directional antenna with a frequency range of 2.4GHz. This single band antenna and surface mount antenna is multi-polarized.

The Omni 2.4GHz-N is a low profile Multi-Polarized Surface Mount Omni Antenna designed for mobile data communications. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

The Omni 2.4GHz Surface Mount Omni Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Applications

  • 2.4 GHz Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • WIMAX
  • Vehicle WiFi
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating Transmit and Receive
  • Enhanced Connectivity and Increased Throughput
  • Built In Spatial Diversity
  • Low Profile
  • Surface Mount
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0923

photos

Specifications
Model Number
08-ANT-0923
Frequency Range
2GHz to 3GHz
Gain
6 dBi
VSWR
<1.2:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
N-Female
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2.5 in
Width
2.5 in
Height
1.75 in
Weight
2.6 oz
Included Hardware
Nut and Washer
