08-ANT-0957 | 5GHz WiFi (5.4 to 6GHz) Omni Mobile WiFi Antenna

08-ANT-0957
Request Quote

WiFi Antenna 08-ANT-0957

  • 5.4GHz to 6GHz, 3 dBi
  • Mobile Antenna
  • 5GHz WiFi Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

WiFi antenna 08-ANT-0957 has a 5GHz WiFi (5.4 – 6GHz) frequency range. This omni directional antenna is a mobile antenna for 5GHz WiFi.

The Micro 5GHz Omni Antenna is the latest in Multi-Polarized technology providing superior patterning and continuous performance for indoor and outdoor wireless communications. The Micro 5GHz Omni Antenna transmits and receives in multiple polarization allowing for higher throughput and more consistent received signal strength values in real world environments where other antennas fail to connect.

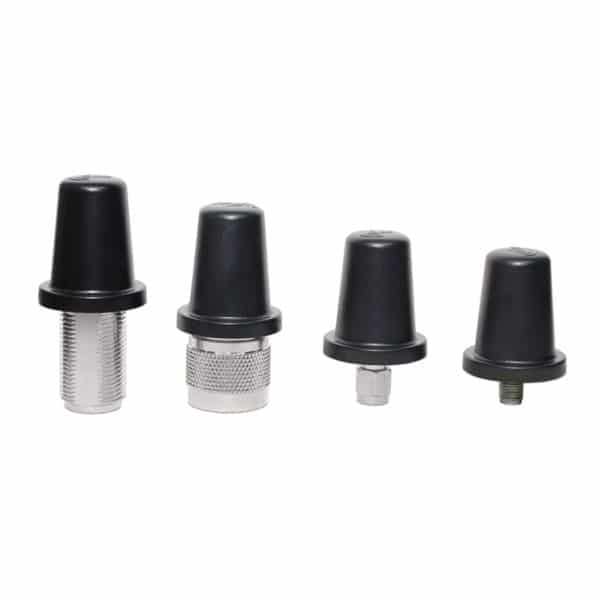

WiFi antenna 08-ANT-0957 is available in multiple different configurations including N-Female N-Male SMA-Male SMA-Female RPSMA-Male and RPTNC Male to install seamlessly on any radio router or data device to ensure maximum reliability when it matters most. Ideal for Non Line Of Sight (NLOS) and highly obstructed deployments. This compact antennas provides increased throughput and signal stability in obstructed environments.

Applications

  • Wireless Broadband Systems.
  • WiFi AP Router Bridge CPE.
  • 5GHz Antenna Band .
  • 802.11 a b g n ac and all other 802.11 Wireless Systems.
  • Wireless Broadband Systems.
  • Wireless Mesh Systems.
  • Vehicle WiFi .
  • High Obstruction Deployments.

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating transmit and receive
  • Enhanced Connectivity and Faster Throughput
  • Built In polarization diversity and spatial diversity
  • Low Profile and rugged design
  • RoHS Compliant
  • Custom Configurations Available

Downloads

Model Data Sheet 08-ANT-0957
Data Sheet 08-ANT-0957 5GHz Antenna
Dimensional Drawing BL-M-1.0 N-Female
Dimensional Drawing BL-M-1.5 N-Female
Dimensional Drawing BL-M-1.0-GP N-Female
Dimensional Drawing BL-M-1.5-GP N-Female
Dimensional Drawing BL-A RPSMA Male
Dimensional Drawing BL-B SMA Male
Dimensional Drawing BL-C SMA Female
Dimensional Drawing BL-D RPTNC Male
Dimensional Drawing BL-G N-Male

photos

Specifications
Model Number
08-ANT-0957
Frequency Range
5.4GHz to 6GHz
Gain
3 dBi
VSWR
<1.6:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers High Grade Aluminum
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
1.0 in
Width
1.0 in
Height
1.2 in
Weight
1.5 oz
Included Hardware
Nut and Washer (female connectors)
