08-ANT-0892 | 3.3 to 3.7GHz Omni Directional Broadband Wireless Antenna

08-ANT-0892
Request Quote

Wireless Antenna 08-ANT-0892

  • 3.3GHz to 3.7GHz, 8 dBi
  • Omni Directional Antenna
  • Wireless Broadband
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

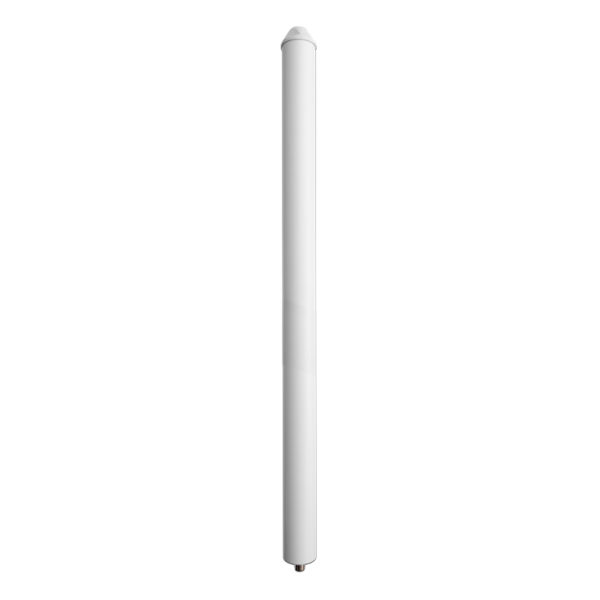

Wireless antenna 08-ANT-0892 is an omni directional antenna for wireless broadband. It has a 3.3 – 3.7 GHz frequency and is multi-polarized.

This high gain antenna radiates maximum power in all directions and provides superior patterning and continuous performance (3.3GHz to 3.7GHz) for base station data communications.

With built-in spatial diversity, the High Gain Omni-3GHz antenna captures signals in any polarization. This allows users to transmit and receive behind buildings, hills, and in valleys where other antennas cannot maintain connectivity. It’s ideal for WiMax deployments, too.

Wireless antenna 08-ANT-0892 is available with custom configurations and connections. It’s Made in the USA by MP Antenna.

Applications

  • WiMax Wireless Systems
  • Wireless Broadband Systems
  • Access Point Router Bridge CPE
  • Building Penetration and High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • RoHS Compliant
  • Light Weight

Downloads

Data Sheet 08-ANT-0892

photos

Specifications
Model Number
08-ANT-0892
Frequency Range
3.3GHz to 3.7GHz
Gain
8 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White
Antenna Feeds
One
Coax Length
Various
Coax Type
Low Loss 200 Series on pigtail versions
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
2 in
Width
2 in
Height
18 in
Weight
8 oz
Included Hardware
Antenna Only
