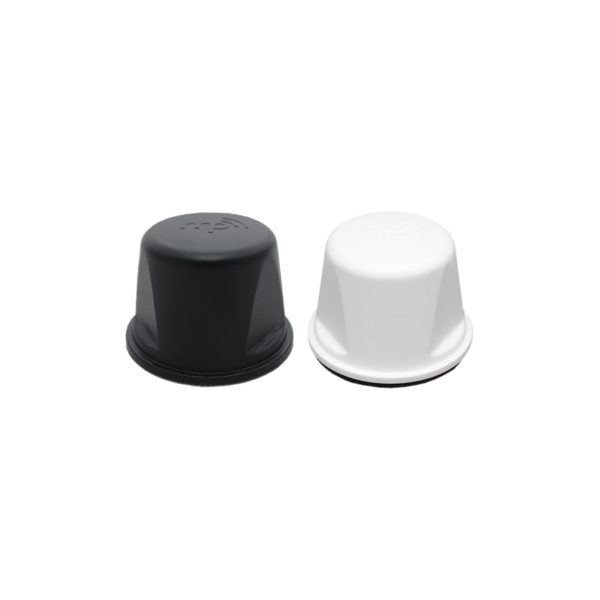

08-ANT-0903 | 3 to 4GHz Mobile Broadband NMO Wireless Antenna

08-ANT-0903
Request Quote

Wireless Antenna 08-ANT-0903

  • 3GHz to 4GHz, 6 dBi
  • Mobile Antenna and NMO Antenna
  • Wireless Antenna and Wireless Broadband
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Wireless antenna 08-ANT-0903 is for wireless broadband and has a 3 – 4 GHz frequency range. This mobile antenna is an NMO antenna. Multi-polarized.

The 3.65 GHz Wimax NMO Mobile Antenna is a low profile Multi-Polarized antenna designed for mobile data communications. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

The Omni 3.65 GHz Wimax NMO Mobile Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Applications

  • Wireless Broadband Systems
  • WIMAX
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Low Profile
  • RoHS Compliant
  • Fits High Frequency NMO mounts with removable pin only

Downloads

Data Sheet 08-ANT-0903

photos

Specifications
Model Number
08-ANT-0903
Frequency Range
3GHz to 4GHz
Gain
6 dBi
VSWR
<1.2:1
Ground Plane
Not Included
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
High Frequency NMO Mount
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP66
Length
2.5 in
Width
2.5 in
Height
1.75 in
Weight
2 oz
Included Hardware
Antenna Only
