08-ANT-0936 | 2.4 5GHz Outdoor Mobile Dual Band Wireless Antenna

08-ANT-0936
Request Quote

PTC Antenna 08-ANT-0936

  • 2GHz to 3GHz, 4.9GHz to 6GHz
  • 6 dBi
  • Mobile Antenna and Dual Band Antenna
  • Maximum Signal Stability
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Wireless antenna 08-ANT-0936 is a dual band antenna that supports PTC. This mobile antenna has a frequency range of 2.4, 5GHz. This outdoor antenna is Made in America.

The Dual Band PTC Antenna is a low profile Multi-Polarized antenna designed for mobile data communications. The exceptional effective hemispherical Multi-Polarized signal pattern provides unequalled wireless communication in “Real World” obstructed non-line-of-sight (NLOS) environments.

Tested and approved by Class One and commuter rail the Omni Dual Band-NMO Antenna utilizes signals in all polarizations allowing users to transmit and receive all available signals in real world obstructed environments where other antennas fail to connect.

Installs on High Frequency Pin Style NMO Mounts and works seamlessly with any radio repeater system or data device to ensure maximum reliability when it matters most. (Fits High Frequency Pin Style NMO Mounts Only)

Applications

  • 2.4 and 5 GHz Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • Train / Rail PTC Communications
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Low Profile
  • RoHS Compliant

Downloads

Data Sheet 08-ANT-0936 Antenna

photos

Specifications
Model Number
08-ANT-0936
Frequency Range
2GHz to 3GHz, 4.9GHz to 6GHz
Gain
6 dBi
VSWR
<1.2:1
Ground Plane
Not Included

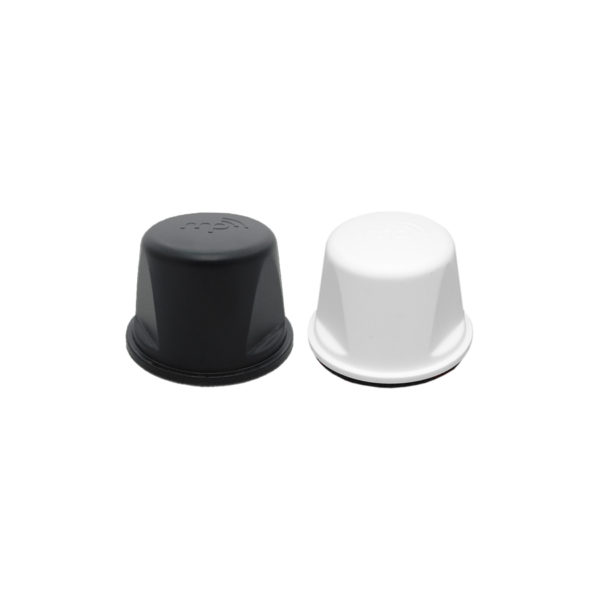

Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
High Frequency NMO Mount
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP66
Length
2.5 in
Width
2.5 in
Height
1.75 in
Weight
2 oz
Included Hardware
Antenna Only
