08-ANT-0942 | 2 to 3GHz Indoor Broadband MIMO Wireless Antenna

08-ANT-0942
Request Quote

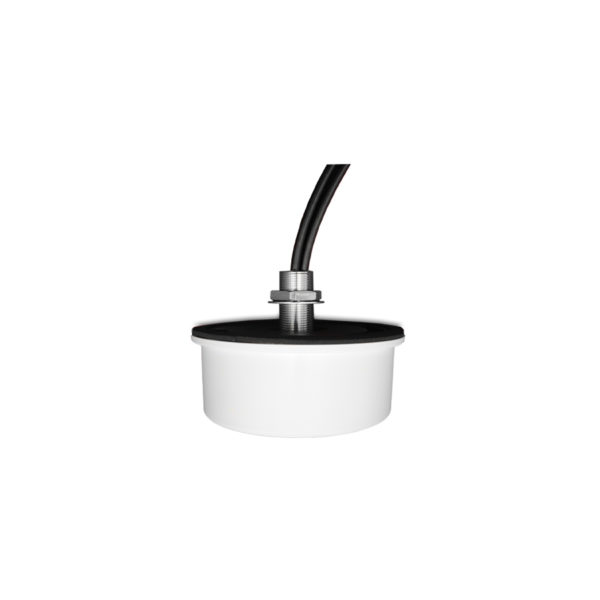

Wireless Antenna 08-ANT-0942

  • 2GHz to 3GHz, 4 dBi
  • Mining Antenna
  • Mobile Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

hemispheric_elevation_vertical

Vertical Radiation

Hemispheric Radiation Pattern

description

Wireless antenna 08-ANT-0942 is for wireless broadband and has a 2 to 3 GHz frequency range. This indoor antenna is both a mobile antenna and a mining antenna. It’s Made in the USA.

This wireless antenna by MP Antenna is a low profile Multi-Polarized MIMO (Multiple-Input-Multiple-Output) antenna providing superior patterning and continuous wideband performance (2-3GHz) for fixed or mobile data communications. The 2.4GHz indoor MIMO Antenna provides separate antenna feeds allowing maximum diversity for 2.4GHz WiFi broadband wireless frequencies.

Wireless antenna 08-ANT-0942 features a built-in ground plane, high-performance low-loss cables, and high-quality connectors for maximum system efficiency. Custom configurations are available.

Applications

  • 2.4 GHz ISM Band
  • 802.11b g n Wireless Systems
  • Wireless Broadband Systems
  • WIMAX
  • Remote Video Monitoring
  • Public Safety Communications
  • indoor Fixed or Mobile

Features

  • Patented Multi-Polarized three dimensional element design
  • Available with 1 2 3 or 4 Separate Antenna Feeds
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Wide Band Performance
  • Integrated Ground Plane
  • UV Stabilized Materials

Downloads

Data Sheet 08-ANT-0942
Build Sheet 08-ANT-0942 2.4GHz Multiple Feed Antenna

photos

Specifications
Model Number
08-ANT-0942
Frequency Range
2GHz to 3GHz
Gain
4 dBi
VSWR
<1.5:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
Upto 4 Feeds
Coax Length
Various
Coax Type
Low Loss 200 Series
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized ASA
Environmental
Indoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
4.5 in
Width
4.5 in
Height
2.5 in
Weight
12 oz
Included Hardware
Nut and Washer
