08-ANT-0956 | 2.2 to 2.6GHz Omni Directional  Wireless Antenna

08-ANT-0956
Request Quote

Wireless Antenna 08-ANT-0956

  • 2.2GHz to 2.6GHz, 3 dBi
  • Omni Directional Antenna
  • Mining Antenna
  • Custom Configurations and Connectors
omnidirectional_azimuth_horizontal

Horizontal Radiation

Omnidirectional Radiation Pattern

full_elevation_vertical

Vertical Radiation

Full Radiation Pattern

description

Wireless antenna 08-ANT-0956 has a frequency range of 2.2 – 2.6GHz. This omni directional antenna is a Micro WiFi Antenna for both indoor and outdoor use.

The MP Micro Omni WiFi Antennas are the latest in Multi-Polarized technology providing superior patterning and continuous performance for wireless communications. Ideal for Non Line Of Sight (NLOS) and highly obstructed deployments. This compact antenna provides increased throughput and signal stability in obstructed environments.

This wireless antenna allows users to transmit and receive in real world environments where other antennas fail to connect. Available in N-Female N-Male SMA-Male SMA-Female RPSMA-Male and RPTNC Male to install seamlessly on any radio router or data device to ensure maximum reliability when it matters most.

Applications

  • 2.4 GHz ISM Band
  • 802.11 a b g n ac and all other 802.11 Wireless Systems
  • WLAN Systems
  • WIMAX
  • Wireless Broadband Systems
  • Wireless Mesh Systems
  • Vehicle WiFi
  • High Obstruction Deployments

Features

  • Patented Multi-Polarized three dimensional element design
  • Obstruction Penetrating TX/RX
  • Enhanced Connectivity and Throughput
  • Built In Spatial Diversity
  • Low Profile
  • RoHS Compliant

Downloads

Model Data Sheet 08-ANT-0956
Data Sheet 08-ANT-0956-BL-M-1.0 N-Female
Data Sheet 08-ANT-0956-BL-M-1.5 N-Female
Data Sheet 08-ANT-0956-BL-A RPSMA Male
Data Sheet 08-ANT-0956-BL-B SMA Male
Data Sheet 08-ANT-0956-BL-C SMA Female
Data Sheet 08-ANT-0956-BL-D RPTNC Male
Data Sheet 08-ANT-0956-BL-E TNC Male
Data Sheet 08-ANT-0956-BL-G N-Male

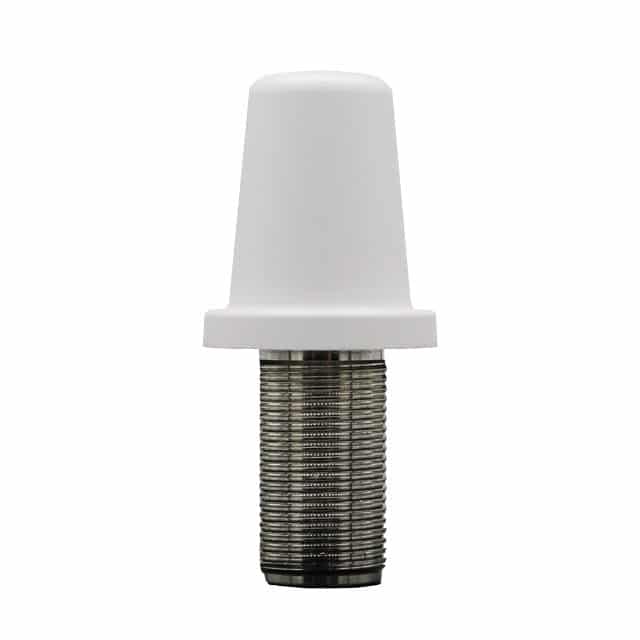

Data Sheet 08-ANT-0956-WH-M-1.0 N-Female
Data Sheet 08-ANT-0956-WH-M-1.5 N-Female

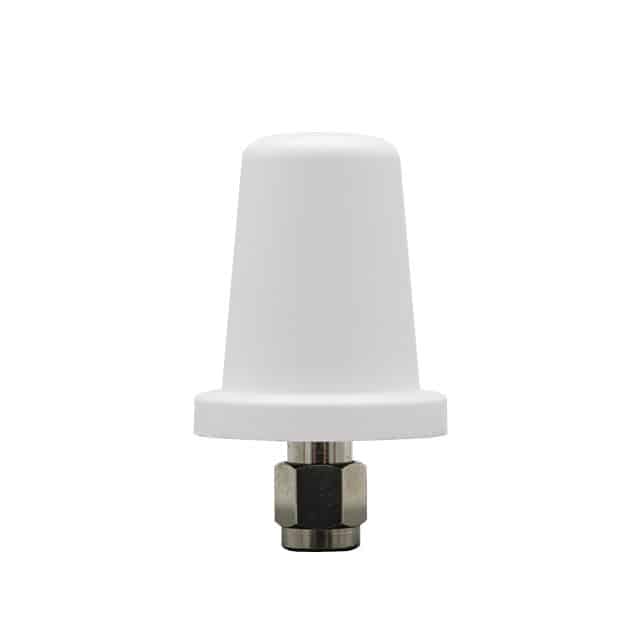

Data Sheet 08-ANT-0956-WH-A RPSMA Male
Data Sheet 08-ANT-0956-WH-B SMA Male
Data Sheet 08-ANT-0956-WH-C SMA Female
Data Sheet 08-ANT-0956-WH-D RPTNC Male

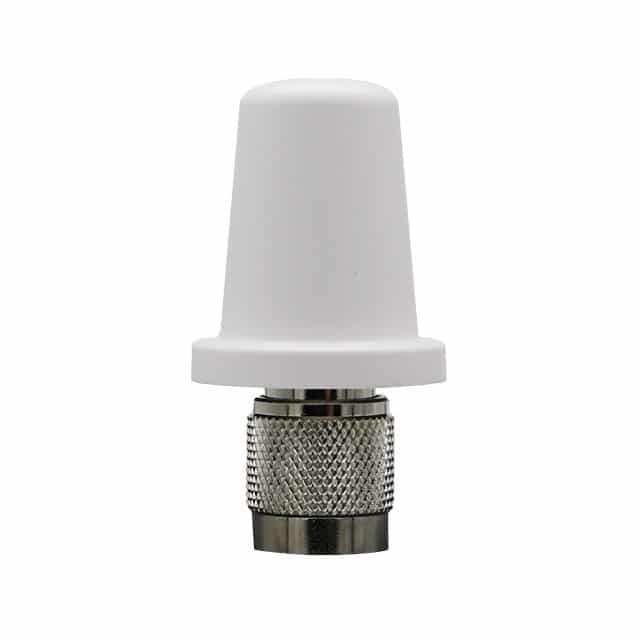

Data Sheet 08-ANT-0956-WH-E TNC Male

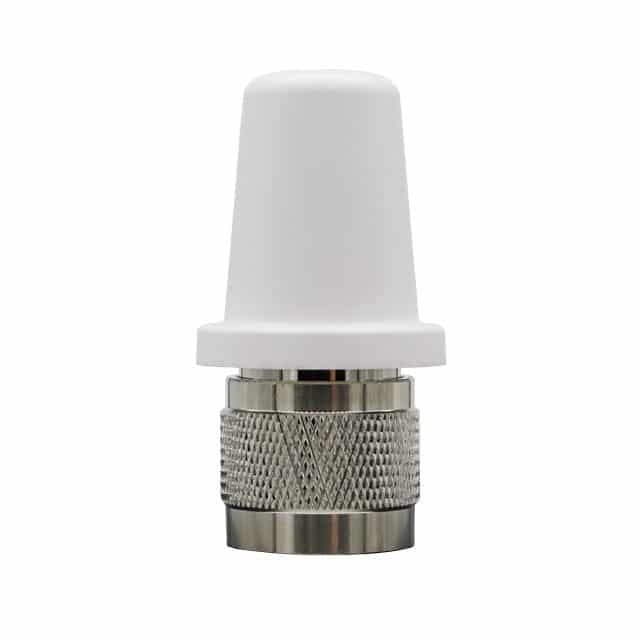

Data Sheet 08-ANT-0956-WH-G N-Male

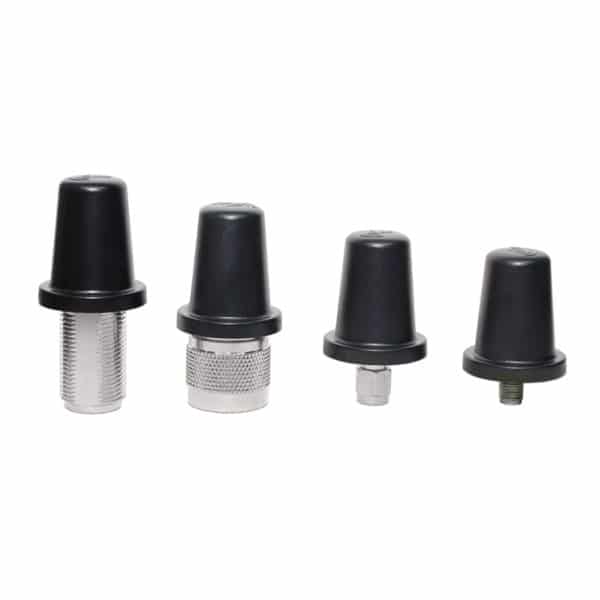

photos

Specifications
Model Number
08-ANT-0956
Frequency Range
2.2GHz to 2.6GHz
Gain
3 dBi
VSWR
<1.6:1
Ground Plane
Built In
Color
White or Black
Antenna Feeds
One
Coax Length
N/A
Coax Type
N/A
Connector Type
Various
Polarization
Multi-Polarized
Power
50 Watts Input
Impedance
50 ohms nominal
Construction
UV Stabilized Polymers High Grade Aluminum
Environmental
Outdoor
Operation Temp
-40 to 85 deg C
Storage Temp
-40 to 85 deg C
Transport Temp
-40 to 85 deg C
IP Rating
IP67
Length
1.0 in
Width
1.0 in
Height
1.2 in
Weight
1.5 oz
Included Hardware
Nut and Washer (female connectors)
